AircraftBeginner
4.9(38 verified builders)

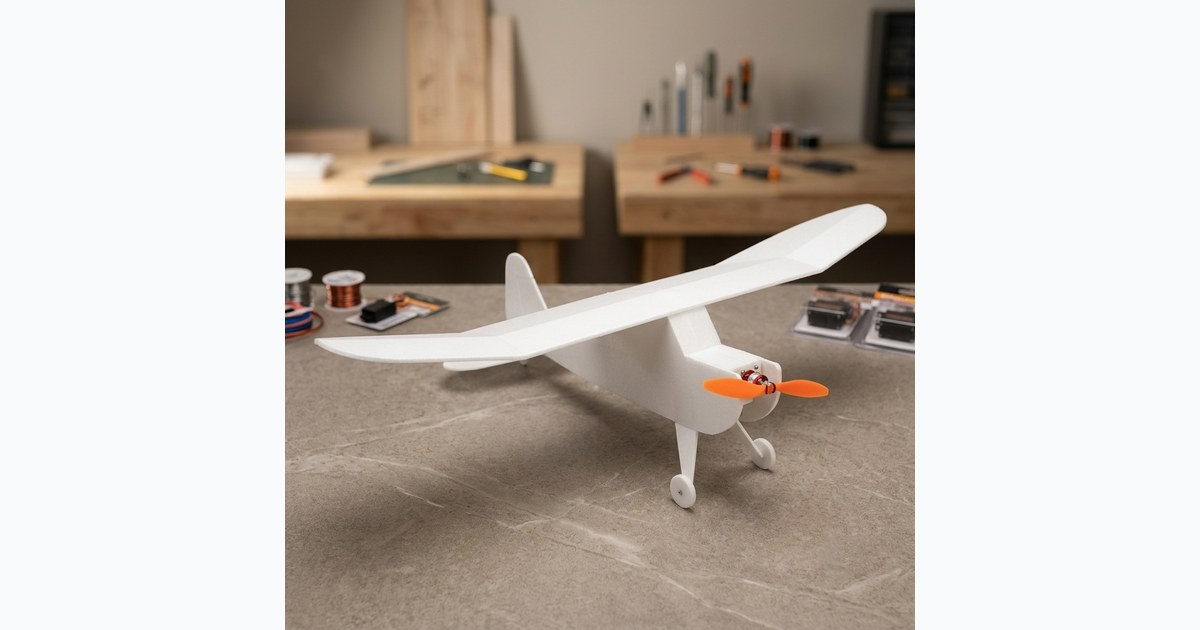

Old Fogey
1410mm (55.5 in) wingspan vintage slow flyer with massive under-cambered high-dihedral wings. Floats at walking speeds, ultra stable and forgiving.
Wingspan1410 mm (55.5 in)
Flying Weight550 g
Assembly Time35-45 mins
Pan-India Safe Delivery in heavy-duty reinforced corrugated cartons
100% Maiden Flight Guarantee: Free replacement laser sheets if broken on first toss
Step 1: Choose Your Completion Level
Kit Builder Configurator
All parts guaranteed 100% compatible
Included in this tier:
Complete Ready-To-Fly Starter Kit Bill of Materials7 Items Included
Total Price (excl. GST)
₹8,099+ GST
Everything in the Airframe + Power Combo
FlySky FS-i6X 6-Channel 2.4GHz AFHDS 2A Radio Transmitter
FlySky FS-iA6B 6CH Receiver with telemetry support
3S 11.1V 1500mAh 45C High-Discharge LiPo Battery Pack
Compact B3 Pro 2S/3S Automatic LiPo Balance Charger
Low-Temperature Hot Glue Gun + 10x Foam-Safe Glue Sticks
Field Maiden Flight Checklist & Center of Gravity (CG) Ruler
Engineering Specs
Specifications & Recommended Equipment
Factory tested airframe benchmarks, electrical power combos, and center-of-gravity parameters.
Airframe Specifications
- Wing Span
- 1410mm
- Length
- 775mm
- AUW (All Up Weight)
- 550gms
- Weight Without Battery
- 425gms
- CG Location
- 76-89mm from the leading edge of the wing
- Material
- Fliteboard Lite (4 Nos) & AlphaBoard (1 Nos)
Recommended Equipment
- Motor
- 1200kv Motor
- ESC
- 20 amp
- Battery
- 500-1000 mAH 3s
- Servos
- (2) 9 gram servos
- Propeller
- 8x4.5 - 9x4.7
- Control Throws
- Elevons / Elevator: 12° (Expo: 30°)
- Skill Level
- Beginner
Unbox Inspection
What's Inside the Box
Complete inventory included in every kit. Every sheet is precision laser-cut with micro-tabs.
What's Included in the Kit (16 Items)
Laser Cut Fliteboard Lite Sheets (4 Nos)
Pushrods (2pcs) (50Cm length)
Wheel Collars (4)
Laser Cut AlphaBoard Sheet (1 Nos)
Pushrod Connectors (2)
Landing gear wire (15in)
Aeroply Parts
Pushrod Guides (2 Long)
Velcro
Motor Mount
Bamboo Sticks (1 long + 3 short)
Paper knife
Control Horns (2)
EPP Foam Wheel Set (2 pcs)
Decals
Data Sheet
Precision Laser-Cut Airframe Sheets (4 Sheets)

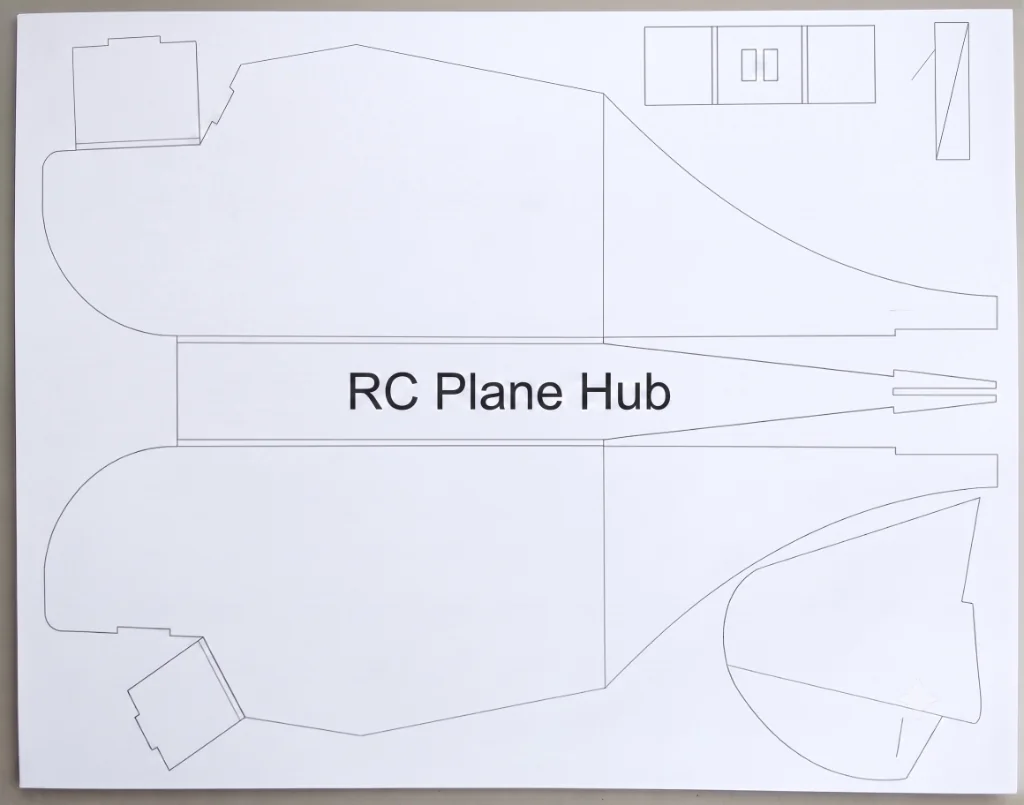

Sheet #1: Old Fogey Fuselage Side Sheets

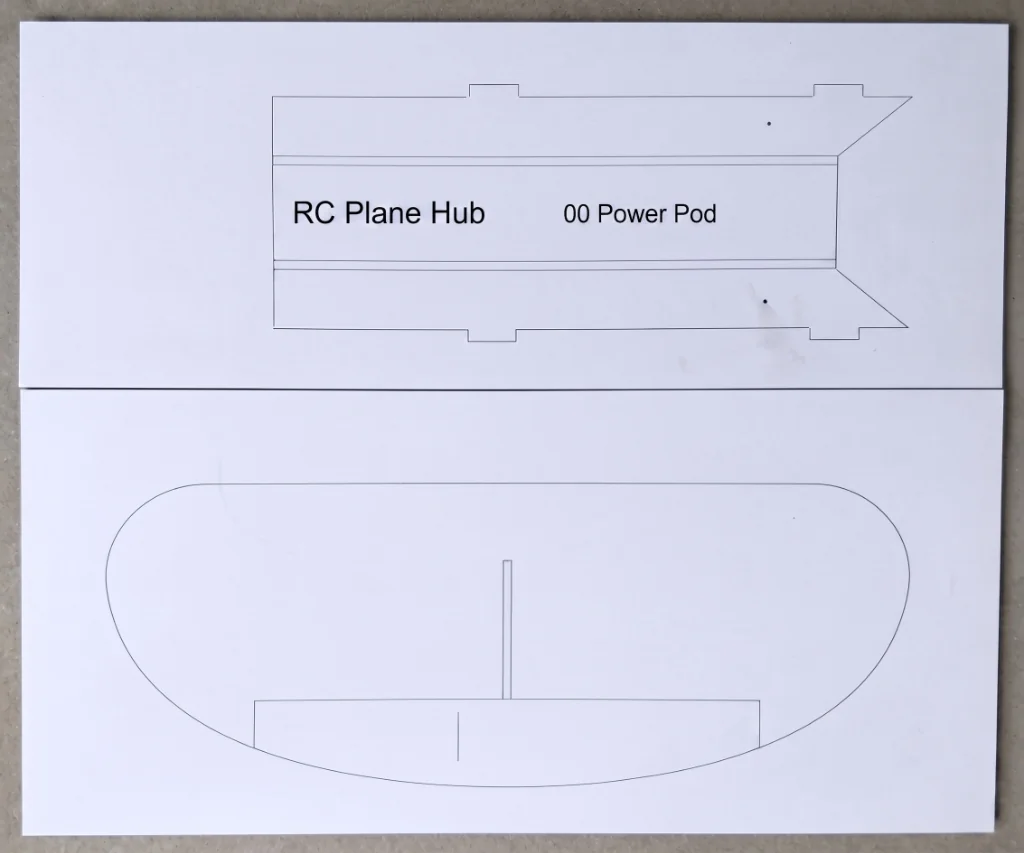

Sheet #2: Old Fogey Power Pod Sheet

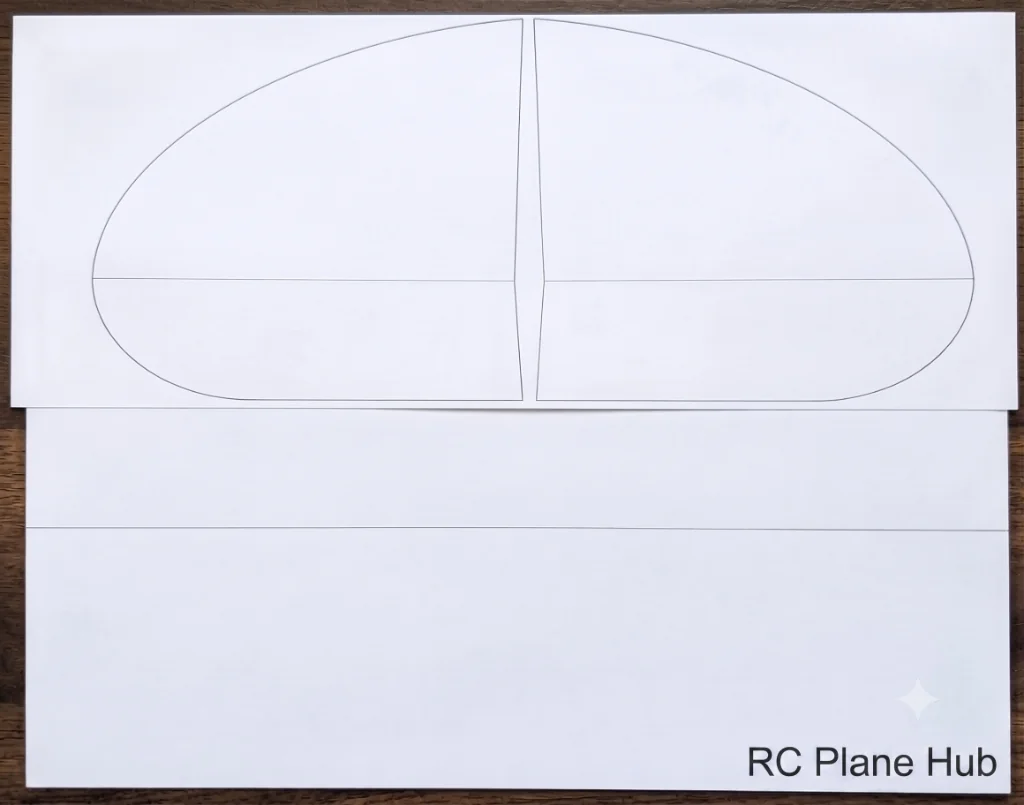

Sheet #3: Old Fogey Under-cambered Wing Sheet
Sheet #4: Old Fogey Tail Feathers Sheet
Old Fogey CG Specs & Calculation Docs
Reference wingspan (1410 mm (55.5 in)), MAC formulas, and factory fingertip balance marks.
Pre-Flight Maiden Checklist
Run the 10-point field checklist before launching Old Fogey on its first voyage.
