AircraftIntermediate
4.9(89 verified builders)

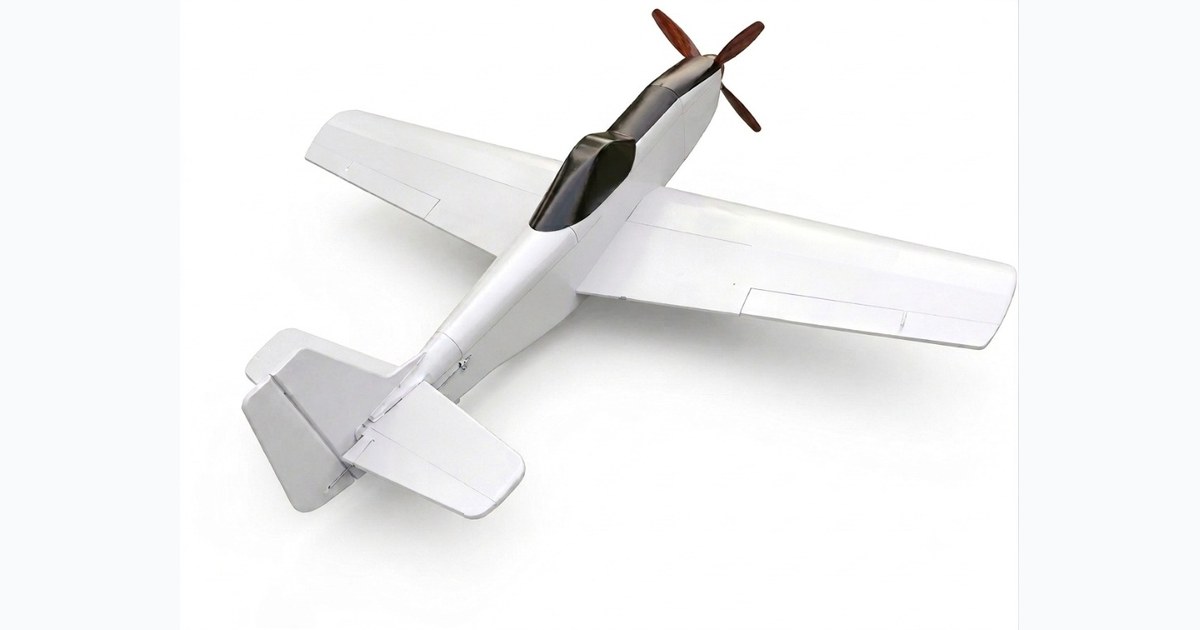

P-51D Mustang
1020mm (40.2 in) wingspan scale WWII fighter built from 4 Fliteboard Pro sheets and laser-cut Aeroply. Docile sport flight performance, wire landing gear, and authentic warbird lines.
Wingspan1020 mm (40.2 in)
Flying Weight750 g
Assembly Time35-45 mins
Pan-India Safe Delivery in heavy-duty reinforced corrugated cartons
100% Maiden Flight Guarantee: Free replacement laser sheets if broken on first toss
Step 1: Choose Your Completion Level
Kit Builder Configurator
All parts guaranteed 100% compatible
Included in this tier:
Complete Ready-To-Fly Starter Kit Bill of Materials7 Items Included
Total Price (excl. GST)
₹8,599+ GST
Everything in the Airframe + Power Combo
FlySky FS-i6X 6-Channel 2.4GHz AFHDS 2A Radio Transmitter
FlySky FS-iA6B 6CH Receiver with telemetry support
3S 11.1V 1500mAh 45C High-Discharge LiPo Battery Pack
Compact B3 Pro 2S/3S Automatic LiPo Balance Charger
Low-Temperature Hot Glue Gun + 10x Foam-Safe Glue Sticks
Field Maiden Flight Checklist & Center of Gravity (CG) Ruler
Engineering Specs
Specifications & Recommended Equipment
Factory tested airframe benchmarks, electrical power combos, and center-of-gravity parameters.
Airframe Specifications
- Wing Span
- 1020mm
- Length
- 815mm
- AUW (All Up Weight)
- 750gms
- Weight Without Battery
- 550gms
- CG Location
- 2.75in / 70mm from the leading edge of the wing
- Material
- Fliteboard Pro (4 Nos) & Aeroply
Recommended Equipment
- Motor
- Min Thrust 700gms
- ESC
- 20-30 amp
- Battery
- 1000-2200 mAH 3s
- Servos
- (4) 9 gram servos
- Propeller
- 8x4.5 - 9x4.7
- Control Throws
- Elevons / Elevator: 16° (Expo: 30°)
- Skill Level
- Intermediate
Unbox Inspection
What's Inside the Box
Complete inventory included in every kit. Every sheet is precision laser-cut with micro-tabs.
What's Included in the Kit (17 Items)
Fliteboard Pro (4 Nos)
Pushrod Connectors (4)
Posterboard Turtle Deck
Aeroply Parts
Landing Gear Wire 2Pcs (20cm x2)
Back Posterboard Canopy
Motor Mount
Wheels (2Pcs)
Velcro
Control Horns (4)
Wheel Collars (4)
Paper knife
Landing Gear Strip (2)
Bamboo Skewers (3 Short)
Decals
Pushrods (4pcs)(10cmx2, 20cmx2)
Datasheet
Precision Laser-Cut Airframe Sheets (5 Sheets)

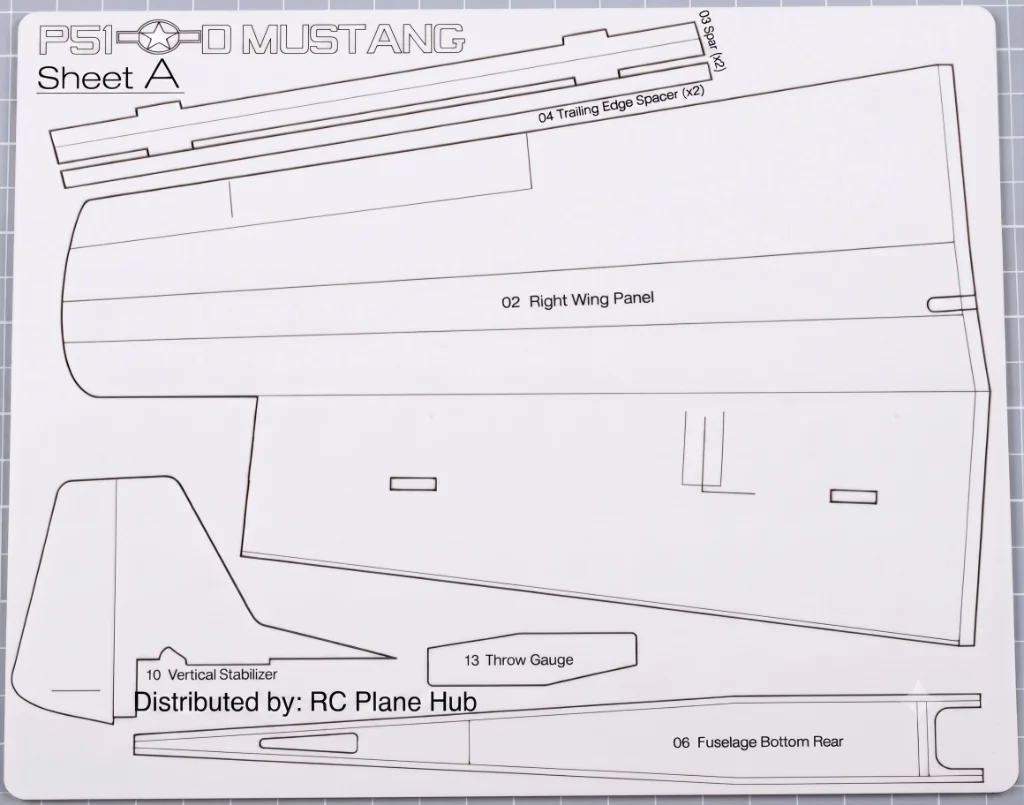

Sheet #1: P-51D Mustang Sheet A (Right Wing / Vertical Fin)

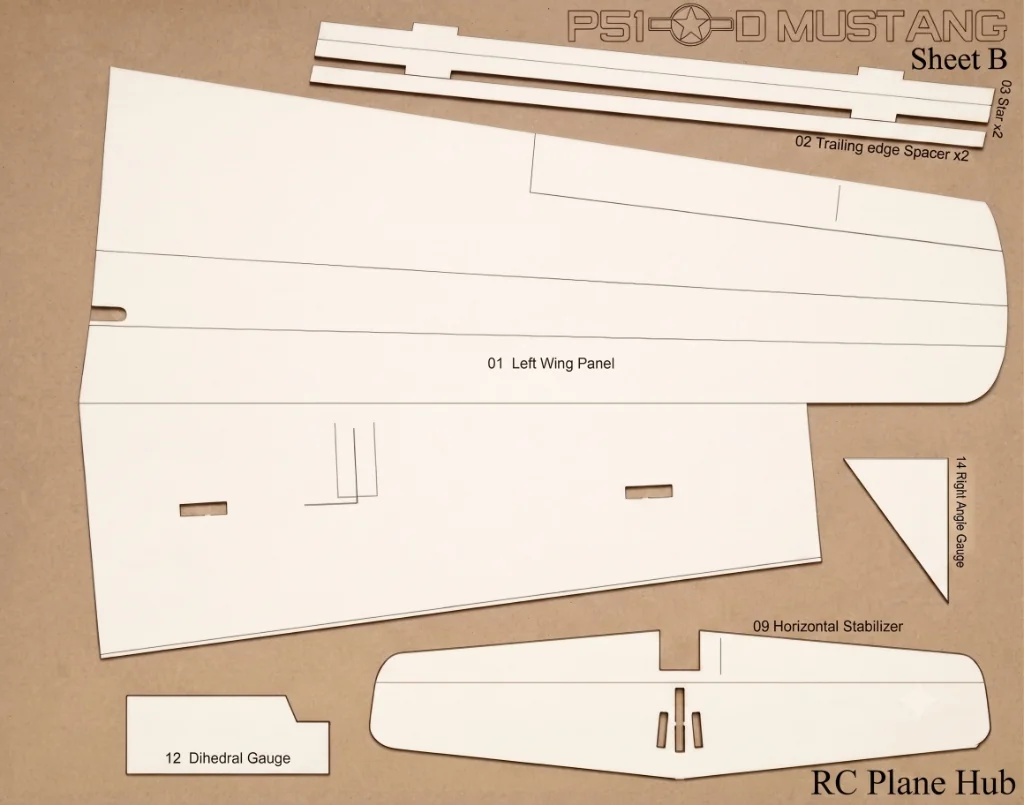

Sheet #2: P-51D Mustang Sheet B (Left Wing / Horizontal Stab)

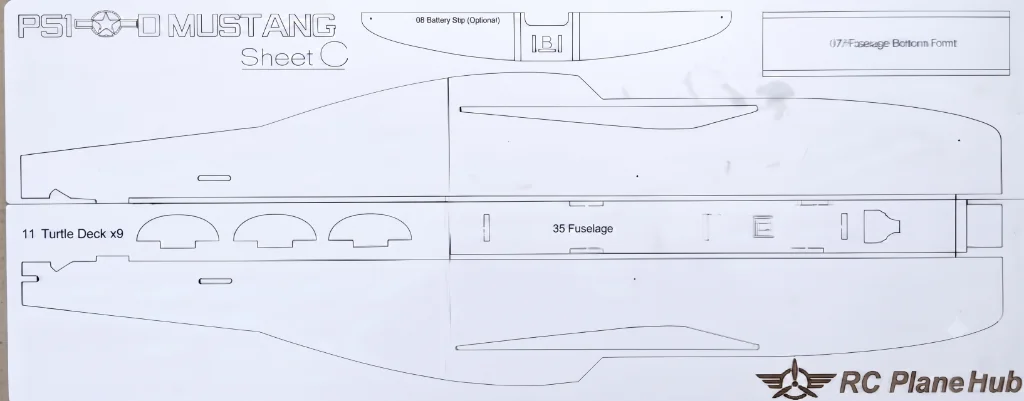

Sheet #3: P-51D Mustang Sheet C (Fuselage Sides & Turtledeck)
Sheet #4: P-51D Mustang Sheet D (Canopy & Scoop Assemblies)

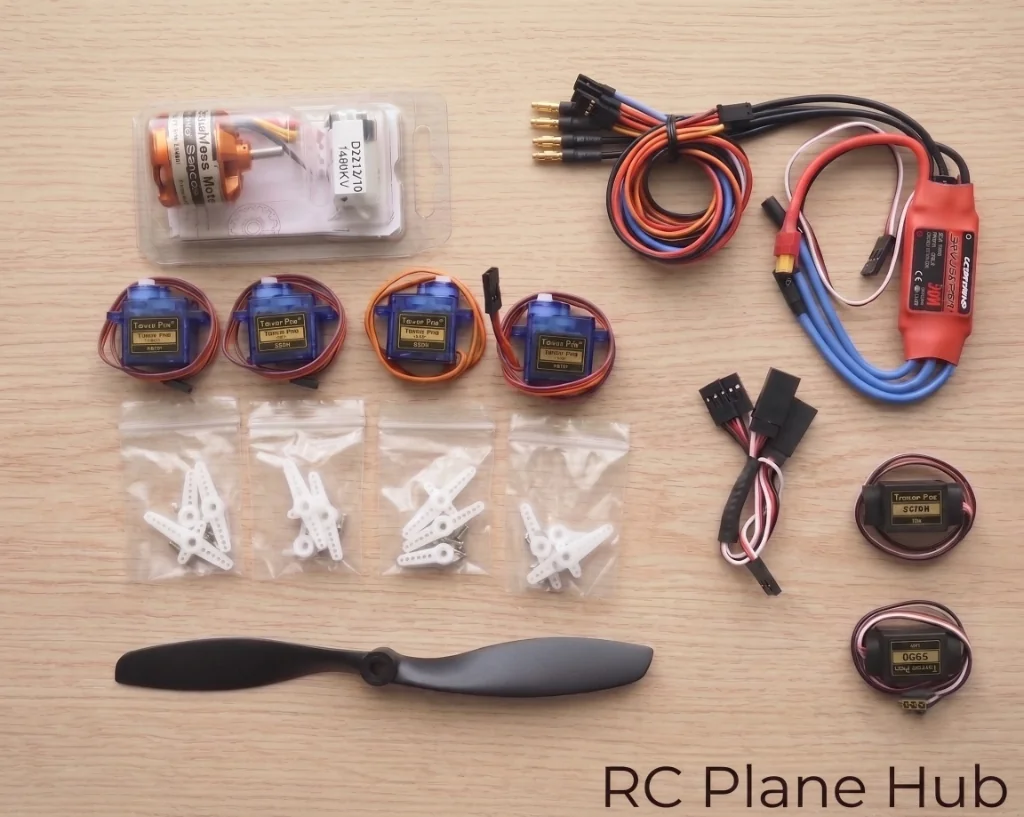

Sheet #5: Recommended Warbird Powerpack & Servos
P-51D Mustang CG Specs & Calculation Docs
Reference wingspan (1020 mm (40.2 in)), MAC formulas, and factory fingertip balance marks.
Pre-Flight Maiden Checklist
Run the 10-point field checklist before launching P-51D Mustang on its first voyage.
